RB22 Barrier Accessories
Mesh fencing, hoarding panels, and gates for enhanced safety and security
The RB22 Barrier system is supported by a range of compatible accessories that increase its flexibility for different site requirements. Options include mesh fencing, solid hoarding panels, half-and-half panels, pedestrian and vehicle gates, corner and end units, and infill panels. Together, they provide solutions for site security, pedestrian control, privacy, visibility, and controlled access.
All accessories are designed to fit securely into the RB22 base barrier using the same interlocking connections. They have been MIRA wind tested with the RB22 system to ensure safe, proven performance in exposed environments.

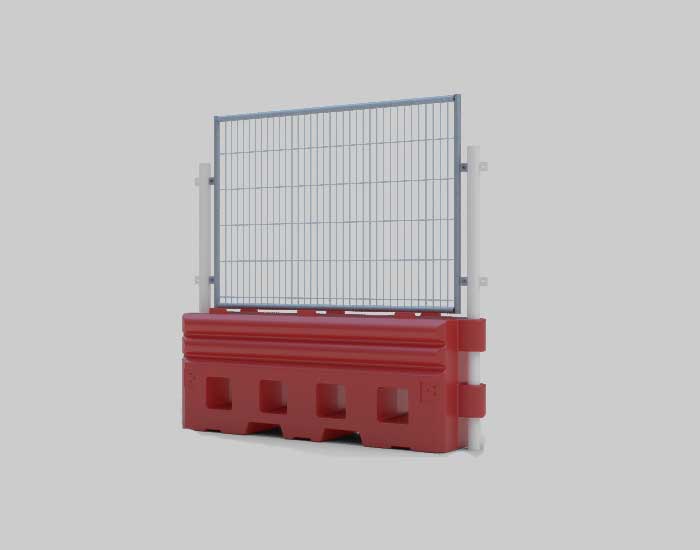

Mesh Fence Panels
Mesh panels provide a strong, anti-climb solution for added security while maintaining visibility.
-
Material & finish: Anti-climb mesh, galvanised or powder coated.
-
Height with RB22 base: 2255 mm (2875 mm with mesh extension).
-
Wind Resistance: MIRA wind tested. 78 mph wind speed withstood (not to failure point). Class A passed
-
Handling: Lightweight design, approx. 8.7 kg per panel.
-
Special feature: Allows clear visibility through the barrier line.
Hoarding Panels
Solid hoarding panels offer privacy and security, blocking views into restricted areas.
-
Material & finish: Steel hoarding, powder coated.
-
Height with RB22 base: 2255 mm (2875 mm with mesh extension).
-
Wind Resistance: MIRA wind tested. 44 mph wind speed withstood (not to failure point). Class B passed
-
Handling: Approx. 25 kg per panel.
-
Special feature: Provides full screening for sensitive sites.
-
RB22 Plastic Barrier Hoard: A robust yet lightweight alternative to traditional steel hoarding. Find out more about RB22 Plastic Barrier Hoard.

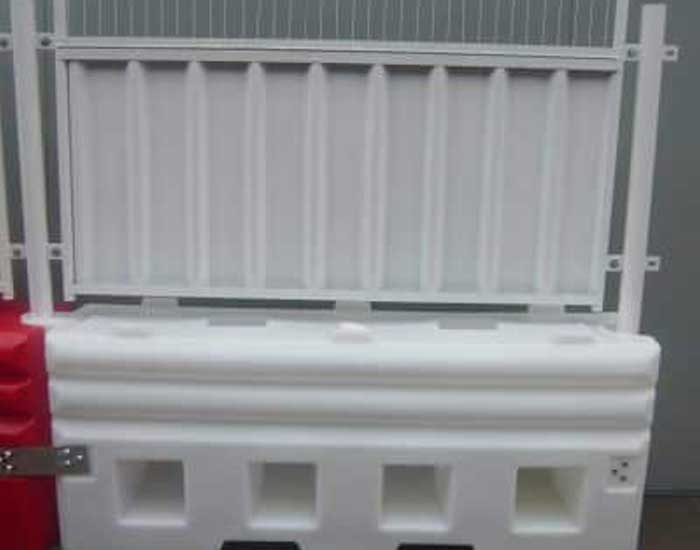

Half Hoarding / Half Mesh Panels
A combination of hoarding and mesh delivers privacy at lower levels with visibility above.
-
Material & finish: Steel hoarding lower section with mesh upper.
-
Height with RB22 base: 2255 mm (2875 mm with mesh extension).
-
Wind Resistance: MIRA wind tested. 60 mph wind speed withstood (not to failure point). Class B estimated
-
Handling: Approx. 17 kg per panel.
-
Special feature: Balance of screening and visibility.
Pedestrian and Vehicle Gates
Pedestrian and vehicle gates create safe access points for both people and vehicles.
-
Material & finish: Available in hoarding or mesh type; galvanised and powder coated (red options available).
-
Height with RB22 base: Approx. 2250 mm.
-
Special features: Pedestrian gates include a rubber dampening pad and spring mechanism for safe closure. Vehicle gates are fitted with castor wheels and a sliding latch for easy operation.

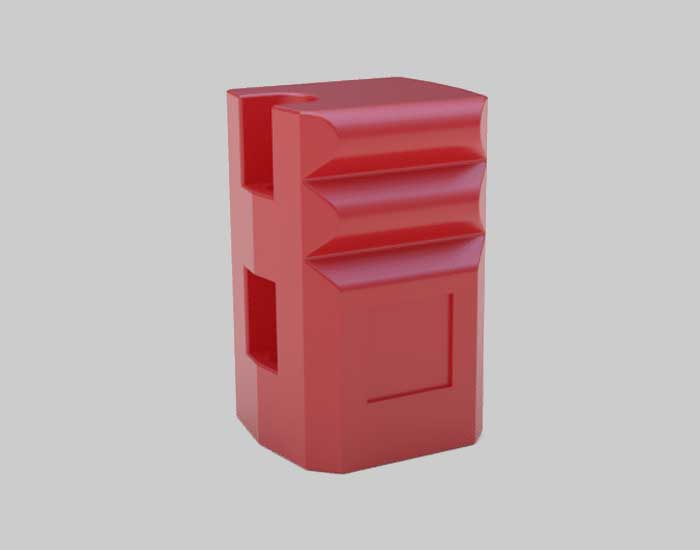

Corner and End Units
Corner and end units provide flexibility for site layouts and safe finishes.
-
Material & finish: Polyethylene, matching the RB22 base.
-
Height: 800 mm
-
Width: 680 mm
-
Depth: 500 mm
-
Weight: 12 kg
-
Special feature: 90° angle for curves and secure termination of barrier runs.
Protect your workforce, road users and pedestrians with the RB22 Barrier – the proven choice for highways, temporary works, and high-risk construction zones. RB22 Barrier is the only plastic crash-tested barrier to BS EN 1317 N1 at 50mph (80kph) making it the ideal choice where vehicles travel at high-speed and in high-risk environments.
Find out more about RB22 Barrier
