RB22 Barrier

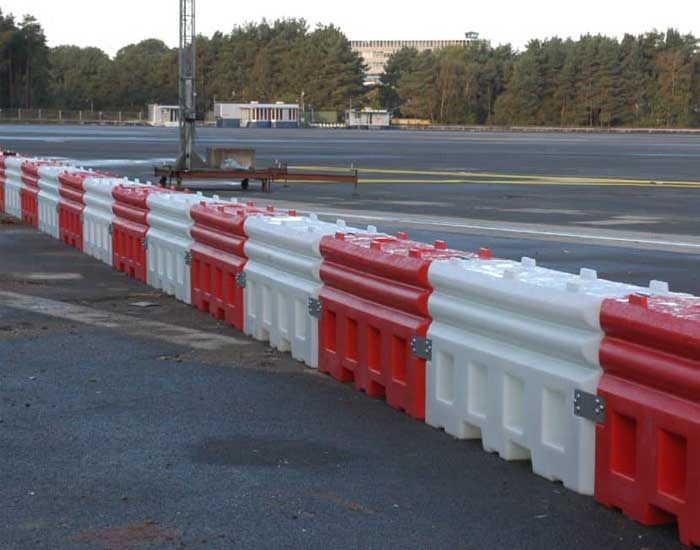

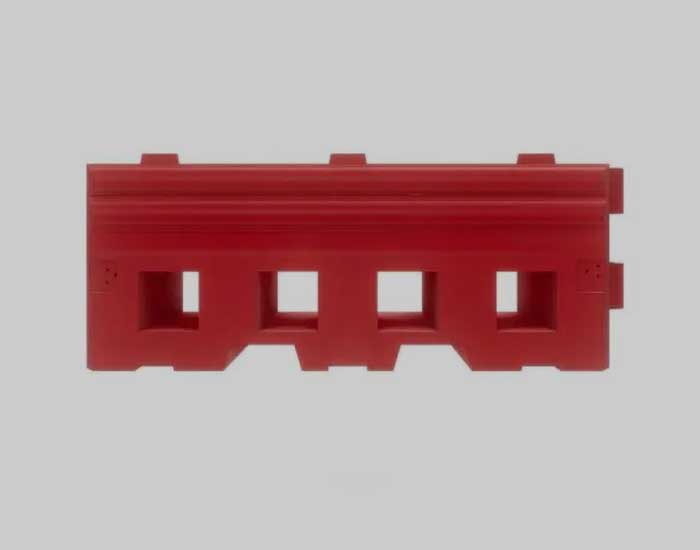

The RB22 is a heavy duty water-filled barrier and the only plastic barrier crash tested to BS EN 1317 N1 at 50mph (80kph). When impacted at high speed, the RB22 contains and redirects the vehicle, bringing it to a safe stop within the barrier system. This makes it an ideal choice for highways, temporary works, and high-risk construction zones, where vehicle impact protection and workforce safety are critical.

Unlike steel systems, the RB22 is lightweight to transport and handle when empty. Each unit can be placed by a two-person lift when empty, and once filled with water provides a robust 600kg ballast for secure performance. With built-in forklift slots, the RB22 can be deployed rapidly and efficiently, with up to 200m transported on a single lorry load.

The RB22’s interlocking pin system and steel side plates create a continuous safety barrier that can handle curves and 90° angles. It is also MIRA wind tested to withstand speeds up to 78mph, providing secure performance in exposed locations. Compatible with a full range of accessories including mesh, hoarding, gates, and infill panels, the RB22 adapts easily to suit highways, construction sites, and event perimeters.

Features and Benefits

• TRL crash tested to BS EN 1317 N1 at 50mph (80kph) – proven vehicle containment and redirection on impact.

• Unique plastic design – safer handling and easier deployment than steel crash barriers.

• High stability – 600kg when filled; withstands wind speeds up to 78mph.

• Quick deployment – two-person lift when empty; forklift slots for efficient handling.

• Interlocking system – secure pin and plate connections for straight runs, curves, and 90° angles.

• Compact transport – up to 200m of barrier per lorry load.

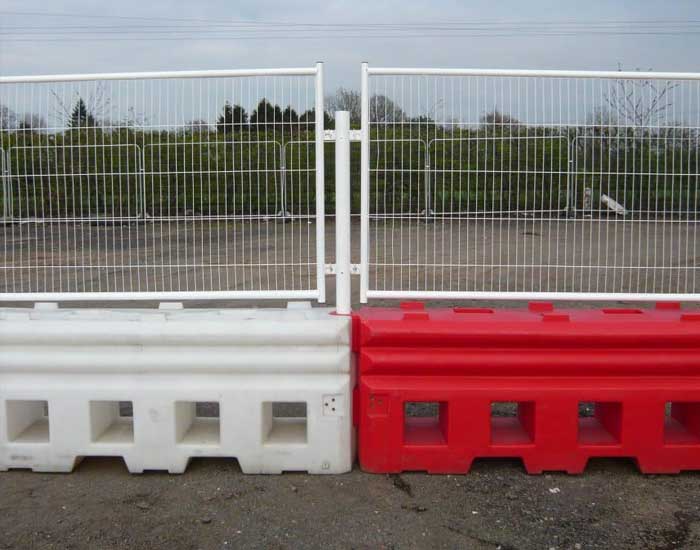

• Compatible accessories – integrates with mesh, hoarding, gates, and infill panels.

• Durable build – UV stabilised polyethylene, available in red and white.

Specifications

• Length (total / working): 2190 mm / 2000 mm

• Width: 500 mm

• Height: 800 mm

• Weight (empty / filled): 60 kg / 600 kg

• Material: UV stabilised HDPE

• Colours: Red / White

• Connections: Interlocking steel pin and plate system

• Cornering: Straight runs, curves, and 90° angles

• Wind Resistance: MIRA wind tested. 78 mph wind speed withstood (not to failure point). Class A passed

• Crash Testing: BS EN 1317 N1, 50mph (80kph)

​​​​​​Common Applications

• Highways and roadworks – impact-tested protection for vehicles, pedestrians, and workers.

• Construction sites – define secure perimeters and protect work areas from vehicle intrusion.

• Street works – provide a safe barrier around temporary works in public areas.

• Motorsport tracks – manage raceway safety and protect restricted zones.
