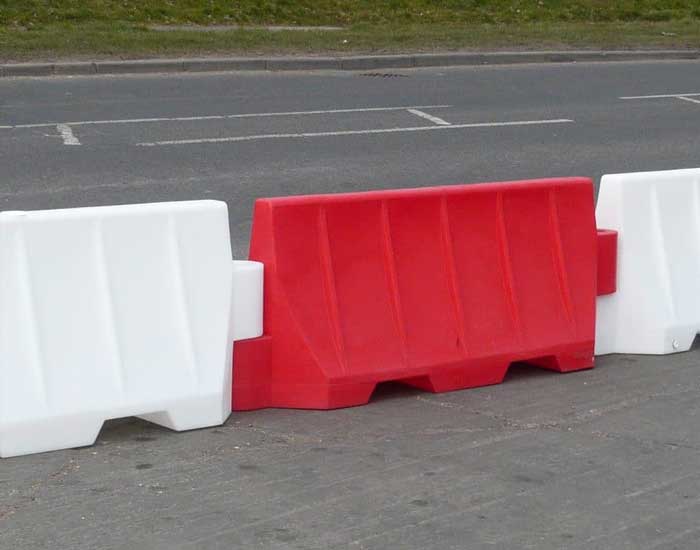

Sitewall Barrier
Heavy-duty water-filled perimeter protection
The Sitewall Barrier is a robust water-filled barrier designed to create secure, continuous perimeters around construction sites, utilities, events, and pedestrian routes. Its primary role is to provide safe separation between work zones, traffic, and the public — ensuring professional boundary control wherever it’s deployed.
Manufactured from UV-stabilised HDPE, Sitewall combines durability with ease of handling. At just 15 kg empty, it can be positioned quickly by one person, then filled with water or sand up to 300 kg for heavy-duty stability. This makes Sitewall both highly adaptable and reliable in exposed environments.
The interlocking design allows units to form tight 90° corners with no gaps, enabling clean, tamper-resistant barrier runs. Sitewall is also stackable for efficient transport and storage, and can be fitted with mesh fencing panels for additional height, security, and crowd control.
Features and Benefits
-
Heavy-duty stability – Fill to 300 kg with water or sand for maximum resistance to movement.
-
Secure interlocking – Gap-free joins and 90° cornering create strong, continuous runs.
-
Quick deployment – Lightweight at 15 kg empty for easy single-person handling.
-
Fully stackable – Efficient transport and storage, maximising run length per load.
-
Weather and UV resistant – HDPE construction for long-term durability outdoors.
-

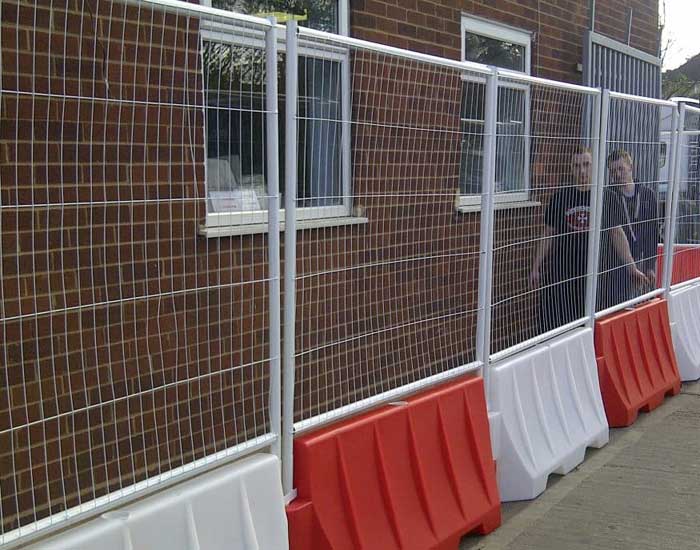

Scalable security – Add mesh panels to achieve 1.2 m or 2.0 m total system height.
-
High visibility – Supplied in alternating red/white as standard (other colours available on request).
Specifications
-
Length: 1600 mm
-
Width/Depth: 400 mm
-
Height (barrier only): 650 mm
-
Weight (empty / filled): 15 kg / 300 kg
-
Material: UV-stabilised HDPE
-
Colours: Red / White (other colours on request)
-
Cornering: 90° with no gaps
-
Wind resistance: MIRA wind tested. 73 mph wind test withstood for two interlocked units (not to failure point).
Common Applications
-
Construction sites – secure work zones and protect the public.
-
Events and crowd control – create safe pedestrian routes and queuing lanes.
-
Street works and utilities – segregate live traffic and define safe work areas.
-
Temporary perimeters – establish rapid, professional boundaries where fencing alone is insufficient.
Accessories Available
1.2 m Mesh Fence Panels
Increase system height to 1.2 m for crowd control and pedestrian guidance.
-
Material & finish: Galvanised steel, powder-coated (white standard; other RAL colours available).
-
Height with base unit: 1.2 m total system height.
-
Panel size: 1558 mm (W) × 815 mm (H) × 38 mm (D).
-
Weight: 5.6 kg.
-
Attributes: Anti-climb, rust-resistant, easy to transport and install.
2.0 m Mesh Fence Panels
Extend system height to 2.0 m for high-security perimeters and restricted areas.
-
Material & finish: Galvanised steel, powder-coated (white standard; other RAL colours available).
-
Height with base unit: 2.0 m total system height.
-
Panel size: 1558 mm (W) × 1585 mm (H) × 38 mm (D).
-
Weight: 7 kg.
-
Attributes: Anti-climb, rust-resistant, easy to transport and install.
Full Turnkey Support
At Chevron Traffic Management, our Urban Solutions division offers a comprehensive barrier and separator hire service for temporary traffic management systems – designed to keep urban environments safe, efficient, and compliant throughout all stages of your works or event.
We don’t just supply equipment – we deliver a full turnkey solution, including:
-
Temporary Traffic Management Products for Hire
A wide range of high-quality, compliant products available for short or long-term hire, suitable for complex urban environments, construction sites, utilities, events, and more. -
Design and Planning
Our expert team provides fully customised traffic management designs using AutoCAD, with the option for 3D plans and 3D rendered videos to clearly visualise how the scheme will function and appear once installed. This ensures complete clarity for clients, stakeholders, and local authorities. -
Installation and Removal
Our trained and accredited teams manage the full installation and removal process, ensuring safety, compliance, and minimal disruption. -
Permit Management
We take care of all local authority permits, traffic regulation orders, and approvals required for the installation – simplifying the process and ensuring your project remains on schedule.
Why Choose Chevron TM Urban Solutions?
-
End-to-end service from concept to completion
-
Advanced design capability with 2D, 3D, and video visualisation
-
Fully compliant with industry and local authority standards
-
Seamless integration with events, utilities, and infrastructure projects
-
Experienced teams focused on safety, efficiency, and professionalism
Get in touch with us today to discuss your next project – and see how our Urban Solutions team can help deliver safe, smart, and fully managed traffic control tailored to your needs.
