Novus Barrier
Heavy-duty water-filled security and traffic management system

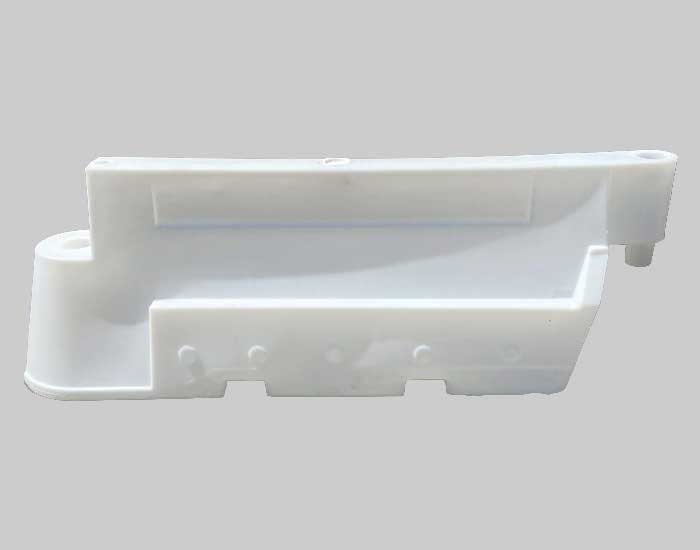

The Novus Barrier is a heavy-duty, water-filled barrier system for site safety, security, and controlled traffic/pedestrian flow across construction sites, highways, utilities, and events. Its core purpose is to create clear, safe boundaries that prevent unauthorised access and guide movement through busy or hazardous areas.
Built from UV-stabilised MDPE, Novus combines durability with practical handling. Each unit is lightweight when empty (25 kg) for easy positioning and ballast-filled on site (water or sand) to 180 kg for dependable stability. The system is designed for low-maintenance use in demanding outdoor conditions.
Novus features tight 90° cornering with no gaps, secure interlocking joins, and a stackable profile for efficient transport and storage. It’s also compatible with accessories for added height, visibility, and access control (see Accessories below).
Features and Benefits
-
Heavy-duty stability – Fill with water or sand to 180 kg for maximum resistance to movement.
-
90° cornering without gaps – Create unbroken perimeters, even in confined spaces.
-
Fast deployment – Lightweight at 25 kg empty for easy manual handling.
-
Fully stackable – Cost-efficient transport and storage, maximising run length per load.
-
Weather and UV resistant – MDPE construction for long service life in exposed conditions.
-
High visibility – Supplied in alternating red/white (custom colours available on request).
-
Secure interlocking – Male/female connections resist tampering and movement
Specifications
-
Length: 2000 mm
-
Width/Depth: 520 mm
-
Height: 800 mm
-
Weight (empty / filled): 25 kg / 180 kg
-
Material: UV-stabilised MDPE
-
Colours: Red / White (other colours available on request)
-
Cornering: 90° with no gaps
-
Wind resistance: MIRA wind tested. 78 mph wind speed withstood (not to failure point). Class A passed.
Common Applications
-
Highway and lane delineation – guides vehicle flow and protects work areas.
-
Construction site boundaries – secures compounds and separates work zones.
-
Events and crowd control – shapes safe queuing and pedestrian routes.
-
Street works & utilities – keeps the public safely away from live works.
-
Temporary compounds – encloses equipment, materials, or restricted areas.
Accessories Available

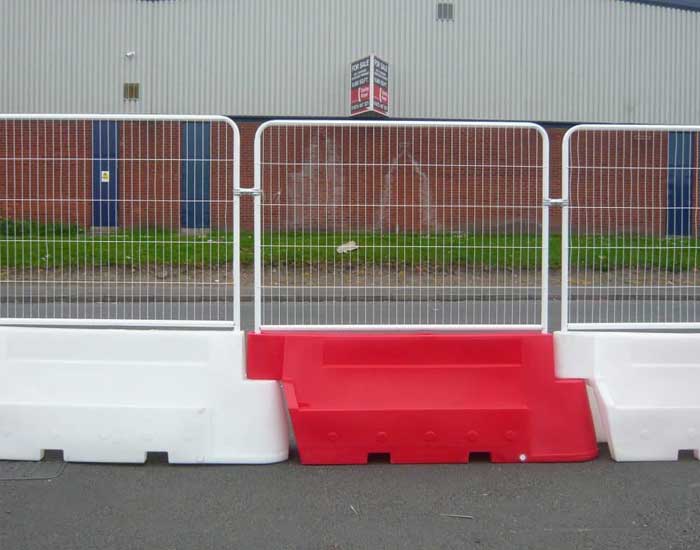

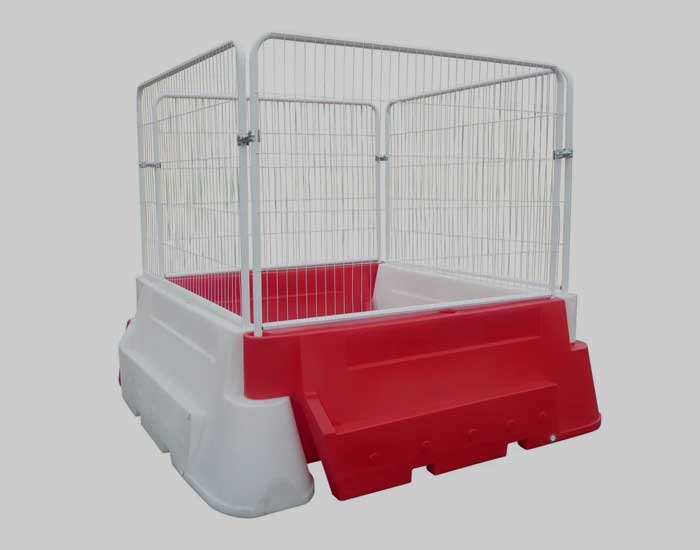

Mesh Fence Panels
Increase perimeter height and prevent climbing for enhanced site security.
-
Material & finish: Galvanised steel, powder-coated (white as standard).
-
Height with base unit: 2.15 m total system height.
-
Wind testing: MIRA tested with Novus base. 58 mph wind speed withstood (not to failure point). Class A passed.
-
Installation/handling: Lightweight (8 kg), easy to transport and install.
-
Special feature: Anti-climb, rust-resistant design for added security.
Pedestrian & Vehicle Gates
Provide controlled entry and exit points without breaking the barrier line.
-
Material & finish: Steel, powder-coated; available in mesh or solid.
-
Height with base unit: 2.15 m to match mesh runs.
-
Installation/handling: Quick-fit connection to Novus barrier lines.
-
Special feature: Range of widths and formats to suit site access needs.
Reflective strips can be added to mesh panels and gates to enhance visibility in low-light and roadside deployments.
Full Turnkey Support
At Chevron Traffic Management, our Urban Solutions division offers a comprehensive barrier and separator hire service for temporary traffic management systems – designed to keep urban environments safe, efficient, and compliant throughout all stages of your works or event.
We don’t just supply equipment – we deliver a full turnkey solution, including:
-
Temporary Traffic Management Products for Hire
A wide range of high-quality, compliant products available for short or long-term hire, suitable for complex urban environments, construction sites, utilities, events, and more. -
Design and Planning
Our expert team provides fully customised traffic management designs using AutoCAD, with the option for 3D plans and 3D rendered videos to clearly visualise how the scheme will function and appear once installed. This ensures complete clarity for clients, stakeholders, and local authorities. -
Installation and Removal
Our trained and accredited teams manage the full installation and removal process, ensuring safety, compliance, and minimal disruption. -
Permit Management
We take care of all local authority permits, traffic regulation orders, and approvals required for the installation – simplifying the process and ensuring your project remains on schedule.
Why Choose Chevron TM Urban Solutions?
-
End-to-end service from concept to completion
-
Advanced design capability with 2D, 3D, and video visualisation
-
Fully compliant with industry and local authority standards
-
Seamless integration with events, utilities, and infrastructure projects
-
Experienced teams focused on safety, efficiency, and professionalism
Get in touch with us today to discuss your next project – and see how our Urban Solutions team can help deliver safe, smart, and fully managed traffic control tailored to your needs.
