GB2™ Barrier
Mesh fencing, hoarding panels and gates

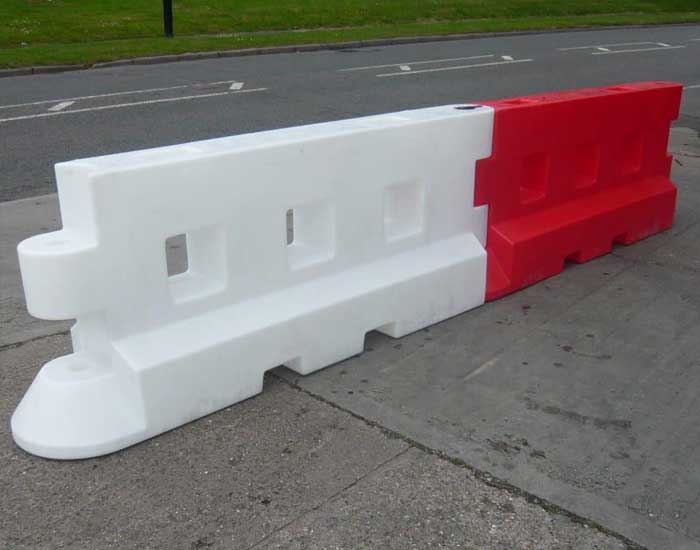

The GB2™ Barrier is a premium, heavy-duty water-filled safety barrier designed for effective highway delineation, construction site protection, event management, and crowd control. With a 2-metre working length and low-level containment height, it offers excellent stability while remaining quick to deploy and easy to store. This makes it ideal for creating safe perimeters, guiding traffic, protecting pedestrians, and clearly marking restricted areas.
Manufactured from UV-stabilised HDPE, the GB2™ Barrier performs reliably in all weather conditions. Weighing just 32 kg when empty, it can be easily installed by two people without lifting equipment. Once water or sand-filled, each unit reaches a ballast weight of 350 kg, delivering superb resistance to high winds, tampering, and accidental movement.
A pin-locking device allows the GB2™ to angle sections up to 35° with no gaps, making it suitable for curves, corners, and uneven ground. Compatible with mesh panels, solid hoarding, pedestrian and vehicle gates, it offers a versatile, high-visibility solution for site protection, traffic delineation, and pedestrian safety.
Features and Benefits
-
Heavy-duty stability – Up to 350 kg when filled for maximum resistance to movement.
-
35° cornering without gaps – Perfect for curves and uneven terrain.
-
Fast deployment – Two-person manual handling at just 32 kg empty.
-
Fully stackable – Efficient transport and storage, enabling long runs per load.
-
Weather and UV resistant – Designed for long service life in demanding environments.
-
High visibility – Supplied in alternating red/white for maximum prominence (custom colours optional for large orders).
-
Forklift compatible – Integrated slots for moving pallets or bulk loads.
Specifications
-
Length: 2000 mm
-
Width/Depth: 500 mm
-
Height: 900 mm
-
Weight (empty / filled): 32 kg / 350 kg (approx. 318 L capacity)
-
Material: UV-stabilised HDPE
-
Colours: Red / White (custom colours available for large orders)
-
Cornering: Up to 35° via pin-locking system
-
Wind resistance: MIRA wind tested. 78 mph wind speed withstood (not to failure point). Class A passed
Common Applications
-
Highway and lane delineation, road closures, and diversions – Clearly define vehicle lanes, block off closed sections, and guide drivers safely.
-
Construction site boundaries and site security – Create strong, visible perimeters for workers and equipment, offering effective protection over long distances.
-
Events and crowd management – Direct pedestrian flow, secure restricted zones, and prevent overcrowding.
-
Utilities and civil engineering works, including street works – Mark out work areas, control traffic, and shield the public from hazards.
Accessories Available

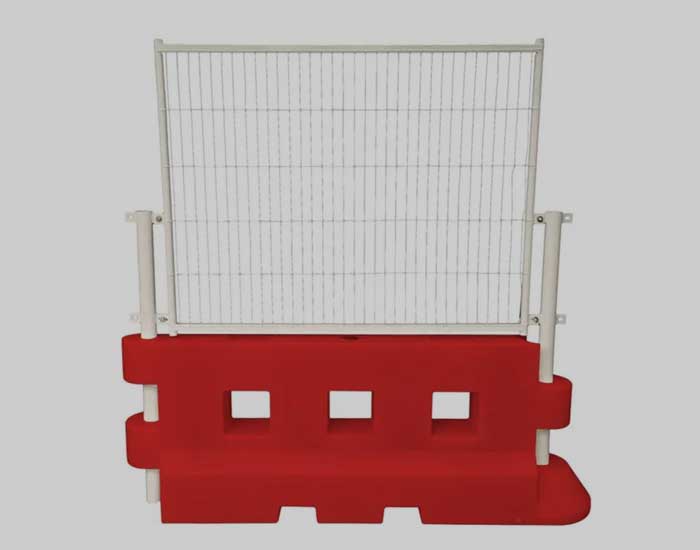

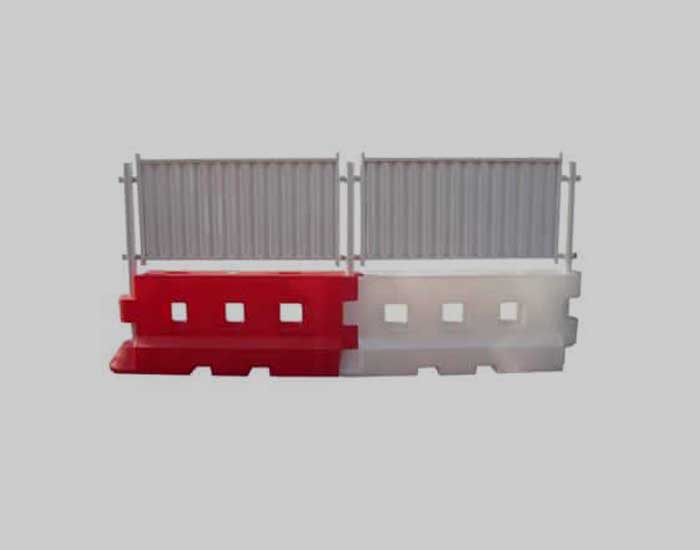

Enhance the GB2™ Barrier with mesh fencing, solid hoarding, combined mesh/hoarding, infill panels, and pedestrian/vehicle gates for controlled access and higher security.
Find out more about GB2™ Barrier accessories
Full Turnkey Support
At Chevron Traffic Management, our Urban Solutions division offers a comprehensive barrier and separator hire service for temporary traffic management systems – designed to keep urban environments safe, efficient, and compliant throughout all stages of your works or event.
We don’t just supply equipment – we deliver a full turnkey solution, including:
-
Temporary Traffic Management Products for Hire
A wide range of high-quality, compliant products available for short or long-term hire, suitable for complex urban environments, construction sites, utilities, events, and more. -
Design and Planning
Our expert team provides fully customised traffic management designs using AutoCAD, with the option for 3D plans and 3D rendered videos to clearly visualise how the scheme will function and appear once installed. This ensures complete clarity for clients, stakeholders, and local authorities. -
Installation and Removal
Our trained and accredited teams manage the full installation and removal process, ensuring safety, compliance, and minimal disruption. -
Permit Management
We take care of all local authority permits, traffic regulation orders, and approvals required for the installation – simplifying the process and ensuring your project remains on schedule.
Why Choose Chevron TM Urban Solutions?
-
End-to-end service from concept to completion
-
Advanced design capability with 2D, 3D, and video visualisation
-
Fully compliant with industry and local authority standards
-
Seamless integration with events, utilities, and infrastructure projects
-
Experienced teams focused on safety, efficiency, and professionalism
Get in touch with us today to discuss your next project – and see how our Urban Solutions team can help deliver safe, smart, and fully managed traffic control tailored to your needs.
