Evo Barrier
Versatile water-filled safety barriers
The Evo Barrier system is a durable, high-visibility solution for traffic management, pedestrian safety, and site protection. Manufactured from UV-stabilised MDPE, these interlocking barriers form a secure, gap-free wall that adapts easily to complex layouts.
Lightweight when empty and stackable for storage, Evo Barriers can be deployed quickly without lifting equipment. Once filled with water or sand, they deliver outstanding stability and have been independently wind tested for reliable performance in exposed locations.
With five base unit designs available – including cornering and slimline options – the Evo Barrier system offers flexibility for almost any project. Optional mesh panel accessories further extend the height and security of the system, creating a scalable solution for work zones, events, and restricted areas
Features and Benefits
-

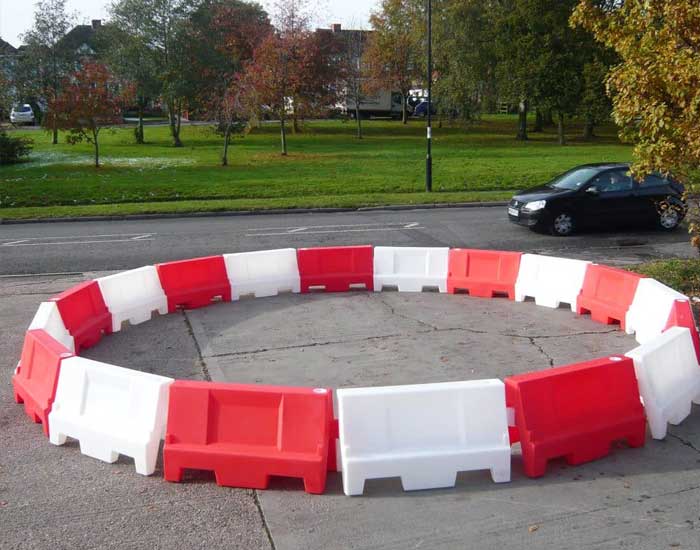

Secure interlocking design – creates a continuous, gap-free wall.
-
Heavy-duty stability – water or sand filled for maximum resistance to movement.
-
Fast deployment – one-person manual handling when empty.
-
Stackable design – cost-effective storage and transport.
-
Durable construction – UV-stabilised MDPE for long outdoor service life.
-
High visibility – supplied in red or white (other colours available on request).
Evo Barrier Base Units
Evo 1
The standard 1m Evo Barrier, designed for flexibility in any site layout. Ideal for projects where shorter lengths allow for more adaptable configurations.
Evo 1.5
A longer 1.5m version of the Evo Barrier, reducing the number of joins and making installation faster on long runs.
Evo 80
Standing taller at 800mm, the Evo 80 offers increased visibility and improved pedestrian and vehicle containment, making it ideal for hazard marking in high-traffic areas.
EvoGator
A slimline barrier at just 300mm wide, perfect for narrow streets, pavements, and other restricted spaces while still providing stability and separation.
Evo Angle
Specially designed to create gap-free 90° corners, ensuring continuous protection around site perimeters or complex layouts.
Evo Barrier Comparison Table
| Model | Length (mm) | Width (mm) | Height (mm) | Empty Weight (kg) | Filled Weight (kg) | Notable Features |
| Evo 1 | 1000 | 400 | 555 | 6.3 | 26.3 | Standard model for flexible layouts |
| Evo 1.5 | 1500 | 400 | 555 | 10 | 30 | Longer runs with fewer joins |
| Evo 80 | 1200 | 400 | 800 | 9 | 29 | Taller for increased visibility and containment |
| EvoGator | 1000 | 300 | 500 | 4.6 | 16 | Slimline for restricted spaces |
| Evo Angle | 1000 | 400 | 555 | – | – | Creates gap-free 90° corners |
Common Applications
-
Traffic management and lane delineation – guide vehicles safely through roadworks or diversions.
-
Pedestrian safety – protect public walkways and manage crowd movement at events.
-
Construction sites – mark perimeters and segregate work areas from live traffic.
-
Restricted access zones – create visible boundaries to deter unauthorised entry.
Accessories Available

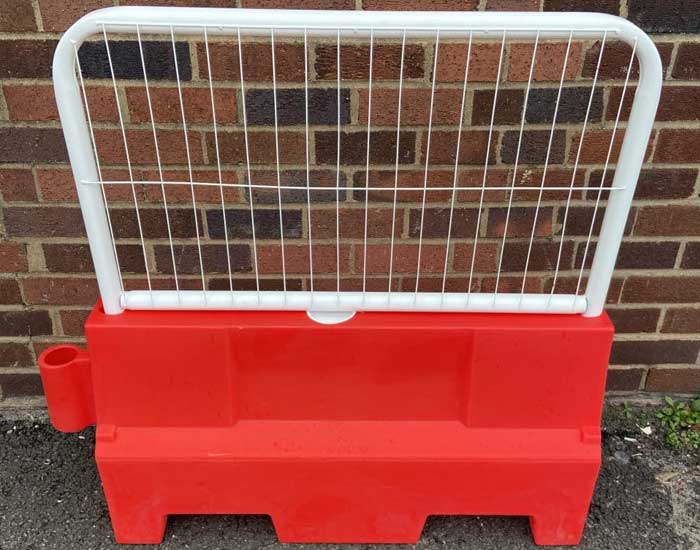

The Evo Barrier system can be fitted with mesh panel toppings to increase height and enhance security while maintaining visibility. Available in multiple sizes, they provide a scalable solution for projects where added protection is required.
View Evo Barrier Accessories
Full Turnkey Support
At Chevron Traffic Management, our Urban Solutions division offers a comprehensive barrier and separator hire service for temporary traffic management systems – designed to keep urban environments safe, efficient, and compliant throughout all stages of your works or event.
We don’t just supply equipment – we deliver a full turnkey solution, including:
-
Temporary Traffic Management Products for Hire
A wide range of high-quality, compliant products available for short or long-term hire, suitable for complex urban environments, construction sites, utilities, events, and more. -
Design and Planning
Our expert team provides fully customised traffic management designs using AutoCAD, with the option for 3D plans and 3D rendered videos to clearly visualise how the scheme will function and appear once installed. This ensures complete clarity for clients, stakeholders, and local authorities. -
Installation and Removal
Our trained and accredited teams manage the full installation and removal process, ensuring safety, compliance, and minimal disruption. -
Permit Management
We take care of all local authority permits, traffic regulation orders, and approvals required for the installation – simplifying the process and ensuring your project remains on schedule.
Why Choose Chevron TM Urban Solutions?
-
End-to-end service from concept to completion
-
Advanced design capability with 2D, 3D, and video visualisation
-
Fully compliant with industry and local authority standards
-
Seamless integration with events, utilities, and infrastructure projects
-
Experienced teams focused on safety, efficiency, and professionalism
Get in touch with us today to discuss your next project – and see how our Urban Solutions team can help deliver safe, smart, and fully managed traffic control tailored to your needs.
