Rota Slot and Rota Block Barriers

The Rota Slot, Rota Block Mini, and Rota Block Large are water-filled ballast blocks designed to provide stability and safety for temporary fencing and hoarding.

Used widely on construction sites, street works, highways, and events, they prevent panels from toppling in high winds and improve overall site safety.

Each model varies in size and ballast weight, from the compact Mini for lighter fencing and pedestrian barriers, through to the Large for hoarding and higher wind resistance.

Together, the range provides secure, adaptable solutions that are easy to install, handle, and remove.

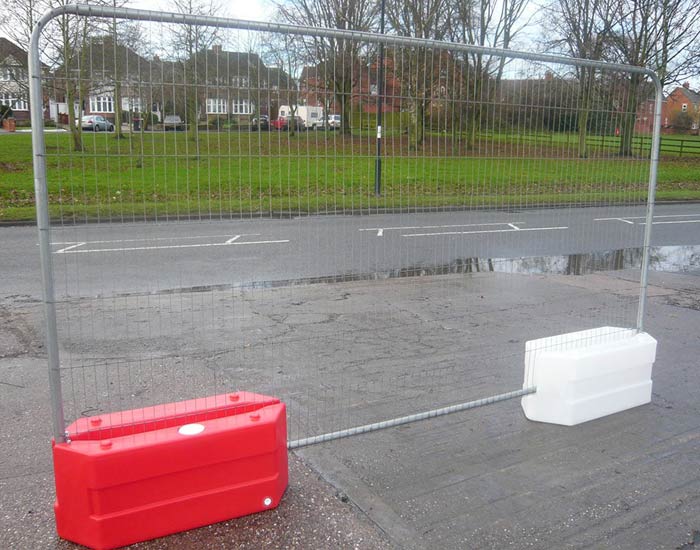

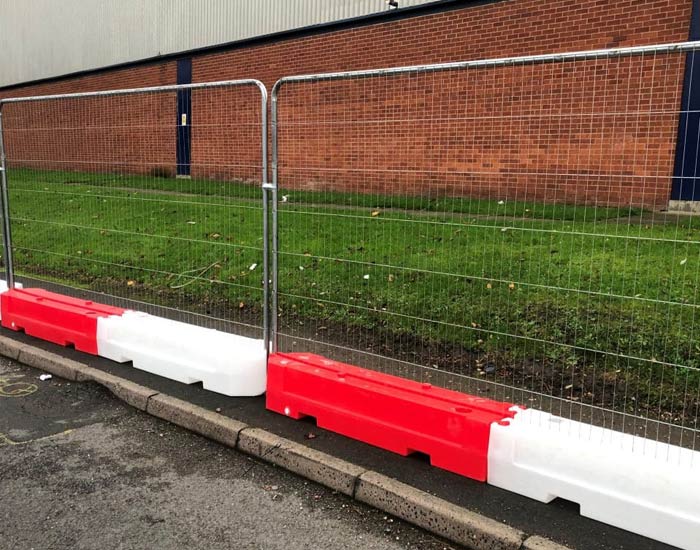

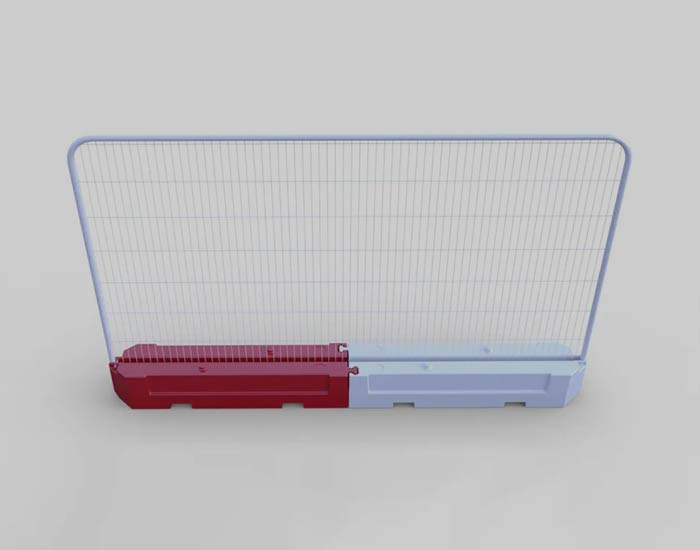

Rota Slot

The Rota Slot is designed for 3.5m fence panels, secured with a safety bolt fastening that prevents tampering and improves stability. Two units are required per panel, and when filled with water they provide a combined ballast of 320 kg.

• Water ballast system – 320 kg when filled

• Fence panels secured with tamper-resistant bolt fastenings or chain

• Interlocking units for continuous runs and 90° cornering

• Optional reflective strips, custom colours, and company branding

• MIRA wind tested with 3.5m mesh fencing, withstood wind speeds up to 67.3 mph

Specifications

• Length: 3500 mm

• Width: 400 mm

• Height: 300 mm

• Weight (Empty / Filled): 26 kg / 320 kg

• Colours: Red / White / Custom

Rota Block Mini

Compact and lightweight when empty, the Rota Block Mini supports fence panels up to 2m high and can also secure Chapter 8 pedestrian barriers. Its design adapts to corners and uneven ground, making it one of the most versatile ballast blocks available.

• Water ballast up to 105kg per unit

• Adapts to corners, angles, and uneven ground

• Secures fencing with a safety fastening or chain

• Drain plug for easy emptying on site

• Options for reflective strips, colours, and branding

• MIRA wind tested: 2 blocks = 54 mph, 3 blocks = 59 mph, 6 blocks = 73 mph

Specifications

• Length: 1000 mm

• Width: 390 mm

• Height: 400 mm

• Weight (Empty / Filled): 9 kg / 105 kg

• Colours: Red / White / Custom

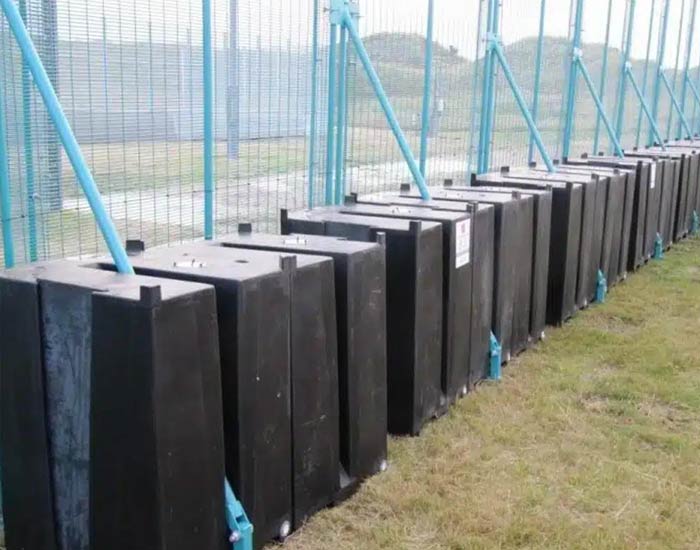

Rota Block Large

The Rota Block Large is a freestanding, linkable ballast system for mesh or hoarding panels. It provides substantial stability against adverse weather, with each unit weighing over 330kg when filled. Multiple blocks can be connected for increased ballast.

• Heavy duty water ballast – 333kg when filled

• Supports mesh or hoarding fence panels

• Linkable units for increased stability

• Easy to deploy, empty, and transport

• Stackable design for storage efficiency

• MIRA wind tested: withstood 62.4 mph; increased to 69 mph when doubled

Specifications

• Length: 620 mm

• Width: 730 mm

• Height: 960 mm

• Weight (Empty / Filled): 22 kg / 333 kg

• Material: Recycled MDPE with steel bracket

• Colour: Black / Custom

Common Applications

• Construction sites – secure temporary fencing and hoarding in exposed conditions.

• Street works and highways – provide stability around live works and pedestrian areas.

• Events and festivals – create safe, durable perimeters for crowd control and restricted access.

• Civil engineering and demolition projects – safeguard perimeters against wind and tampering.
