Pedestrian Access Gates

Pedestrian Access Gates provide safe, visible, and controlled access points within temporary barrier systems. Used at construction sites, events, and other high-footfall areas, they make it easy to create designated entry and exit zones while maintaining the integrity of pedestrian barrier lines. Whether you need simple open walkthroughs for flow management or gated systems for tighter control, these solutions integrate seamlessly with standard steel pedestrian barriers.

Built from durable, powder-coated steel, the gates withstand outdoor conditions, frequent handling, and the demands of busy sites. Supplied in red as standard, they are highly visible to workers and the public, helping to highlight crossing points and reduce risks in busy environments. With options ranging from open walkthrough frames to lockable, spring-loaded gates, the range offers flexibility to match security requirements and crowd management needs while keeping pedestrian access organised and controlled.

Features and Benefits

• Improves safety by clearly defining pedestrian entry and exit points

• Compatible with standard steel pedestrian barriers via hook-and-eye connectors

• Durable powder-coated steel construction withstands outdoor conditions and frequent handling

• Supplied in red as standard for high visibility, helping highlight crossing points and reduce risks

• Flexible options — open access, hinged gate, or spring-loaded gate for added security

• Lightweight and easy to handle, designed for frequent use and quick setup

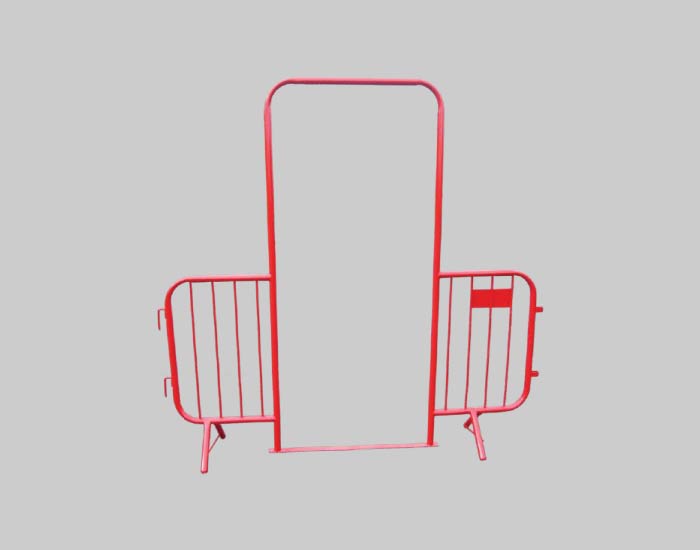

Walkthrough Barrier

The Walkthrough Barrier provides a simple, cost-effective way to create a clear pedestrian crossing point within barrier lines. With an open frame design and powder-coated finish for high visibility, it helps guide pedestrian flow without restricting movement. Ideal for events and low-security applications where clear entry and exit points are needed.

• Length: 2215 m

• Width: 461 mm

• Height: 2165 mm

• Weight: 14kg

• Powder-coated steel (red as standard; other colours available on request)

• Open design — no gate, free-flow access

• Compatible with standard pedestrian barrier systems

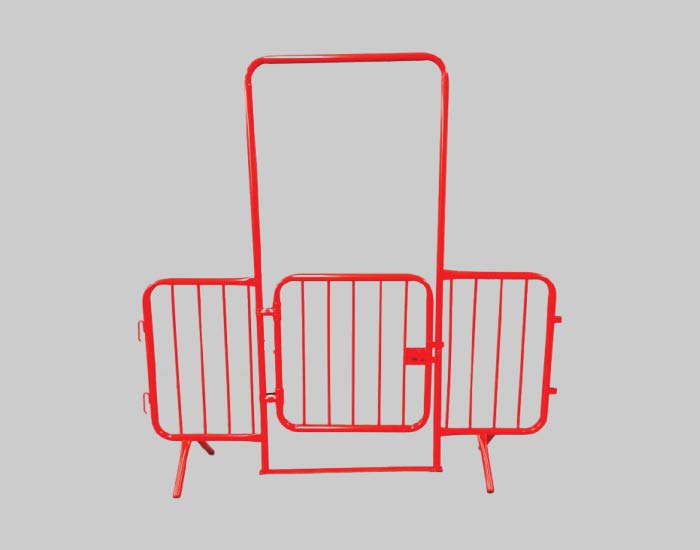

Pedestrian Gate

The Pedestrian Gate adds a secure hinged gate to the walkthrough frame, providing controlled access where simple open barriers are not sufficient. Suitable for construction sites, compounds, or event zones, it combines durability with easy operation to maintain safety while improving site control.

• Dimensions: 2165 mm (H) × 2215 mm (L) × 461 mm (W)

• Weight: 20kg

• Powder-coated steel (red as standard; other colours available on request)

• Hinged gate for controlled access

• Compatible with standard pedestrian barrier systems

Spring-Loaded Pedestrian Gate

The Spring-Loaded Pedestrian Gate is the most advanced option, featuring a self-closing mechanism for enhanced site security. Designed for high-risk or high-footfall areas, it automatically closes after use, reducing the risk of unauthorised entry or gates being left open. A robust choice for sites requiring secure pedestrian access points.

• Dimensions: 2165mm (H) × 2215mm (L) × 461mm (W)

• Weight: 25kg

• Powder-coated steel (red as standard; other colours available on request)

• Spring-loaded hinges for automatic closure

• Compatible with standard pedestrian barrier systems

Common Applications

• Construction sites – creates safe pedestrian crossing points through site perimeters

• Events and festivals – manages crowd flow and separates staff-only zones

• Public works and utilities – controls access into live work areas

• Transport hubs –directs pedestrian movement safely through controlled zones

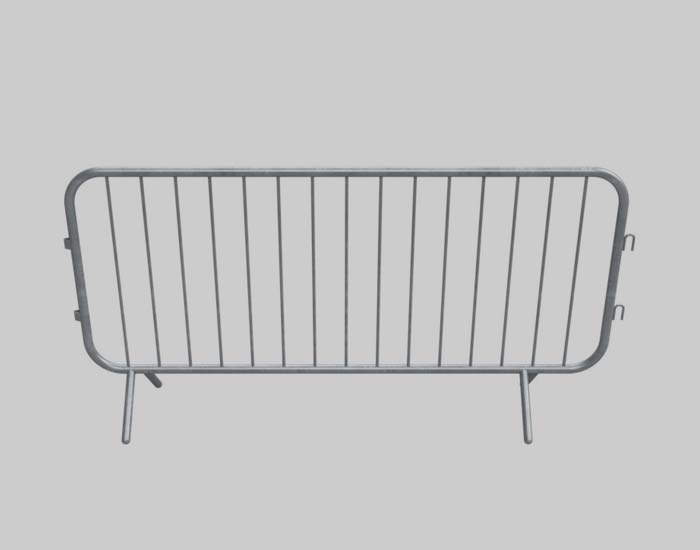

Compatible Barrier System

The Pedestrian Access Gates are designed exclusively for use with the Pedestrian Steel Barrier system, ensuring a safe, secure fit. When combined, they create a complete solution for managing pedestrian flow and controlled site access.
