RB50

Moveable vehicle barrier for rapid HVM deployment



The RB50 is a moveable hostile vehicle mitigation (HVM) barrier designed for rapid deployment to stop vehicles on contact, protecting against both vehicle incursions and vehicle-as-a-weapon attacks.

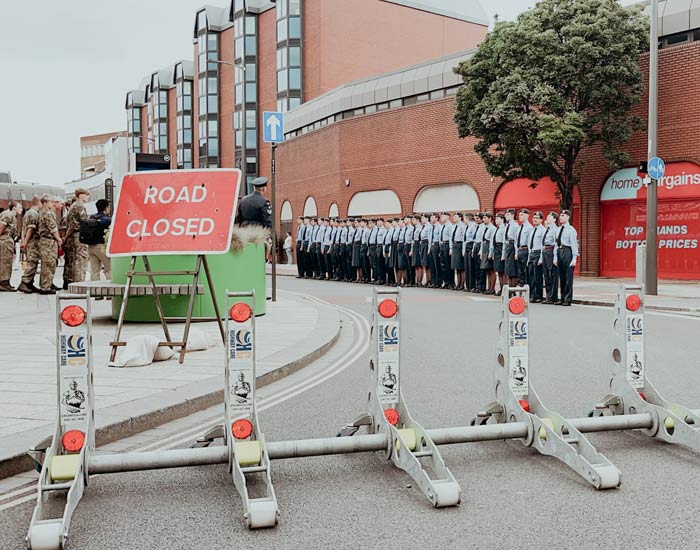

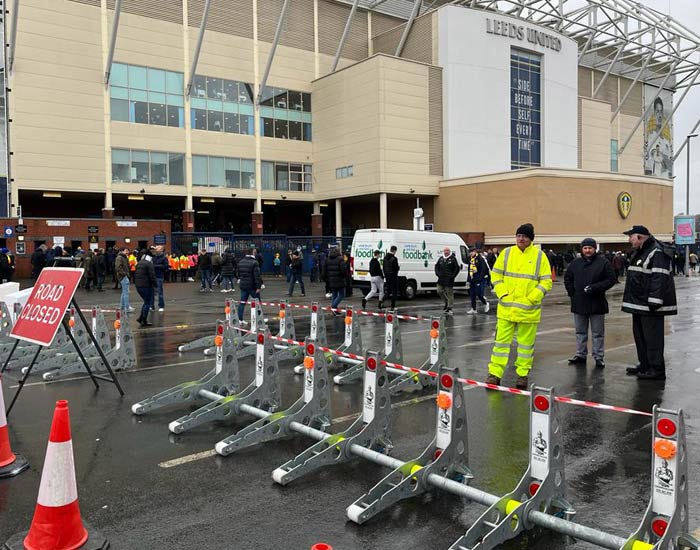

It can be installed as part of a counter-terrorism strategy or to prevent unauthorised incursions into events, work areas, road closures, or secure sites. IWA 14-1:2013 and PAS 68:2013 rated, the RB50 is almost always deployed in its tested four-metre array. Each array can be positioned in minutes, easily moved to allow authorised access, and reconfigured to suit changing site layouts.

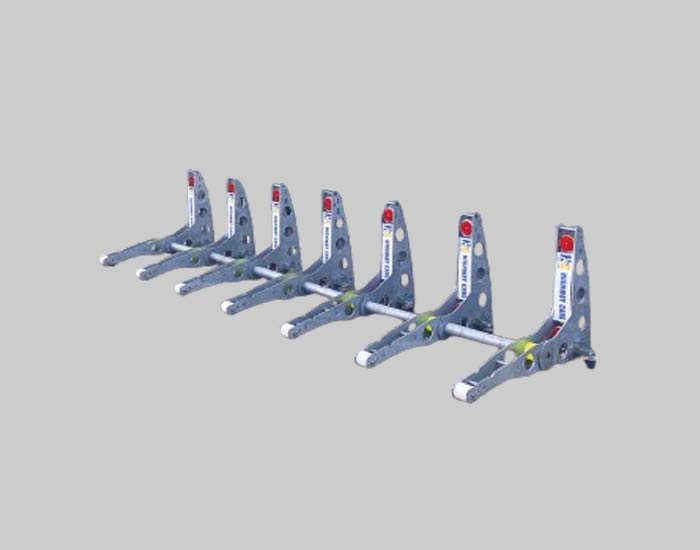

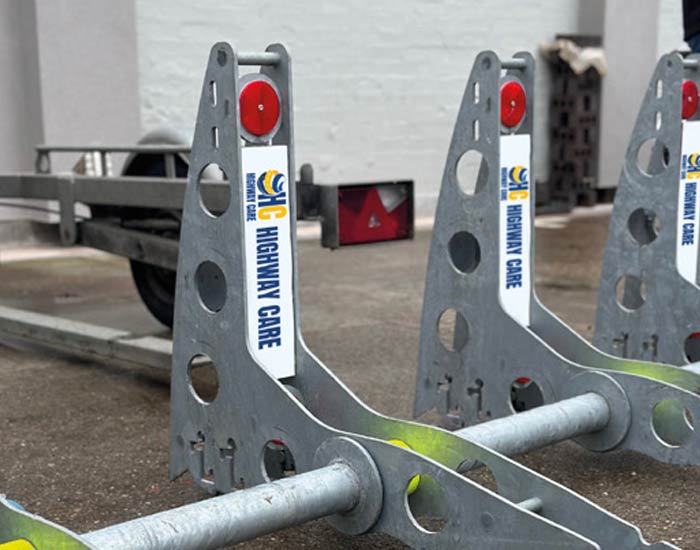

Constructed from galvanised steel, the RB50 combines robust impact performance with mobility. Each unit features swivel wheels for positioning, which can be removed once in place to maintain security. When not in use, arrays dismantle quickly for compact storage in purpose-built stillages – two arrays (8m of HVM protection) fit neatly within a single 1.2m² stillage.

RB50

Features and Benefits

RB50

Specifications

Specification

Detail

Weight

260 kg (4000 mm array)

Width

4000 mm (tested array)

Height

800 mm

Depth

1100 mm

HVM Rating

IWA 14-1:2013

V/3500 (N1)/48/90:12.4
V/7200 (N2)/48/90:25.5 (dbl. upstands, 4000 mm array)
V/7200 (N2)/48/90:31.4



PAS 68:2013

V/7500 (N2)/48/90:31.16






RB50

Common Applications



Download RB50 product information
RB50



Full Turnkey Support

At Chevron Traffic Management, our Urban Solutions division offers a comprehensive hire service for temporary traffic management systems – designed to keep urban environments safe, efficient, and compliant throughout all stages of your works or event.

We don’t just supply equipment – we deliver a full turnkey solution, including:



Why Choose Chevron TM Urban Solutions?



Get in touch with us today to discuss your next project – and see how our Urban Solutions team can help deliver safe, smart, and fully managed traffic control tailored to your needs.
