Husson H-Stop®
Certified mobile HVM barrier for rapid deployment and vehicle threat protection
The Husson H-Stop® is a certified hostile vehicle mitigation (HVM) barrier designed for rapid deployment and effective protection against vehicle-as-a-weapon threats. Compact, mobile, and tested as a standalone unit, it provides certified stopping performance without the need for fixings or ramps.
At just 1.2 m wide and 1.288 m high, each H-Stop® unit can be deployed by a single operative in seconds. The barrier’s design allows it to tip on vehicle impact, redirecting force upward to slow and stop the vehicle through friction and ground adherence. This mechanism neutralises the threat effectively, providing reliable protection without permanent installation.

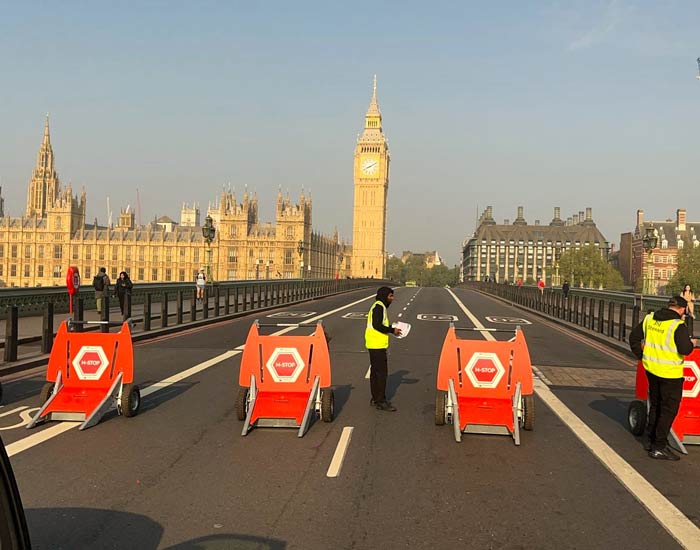

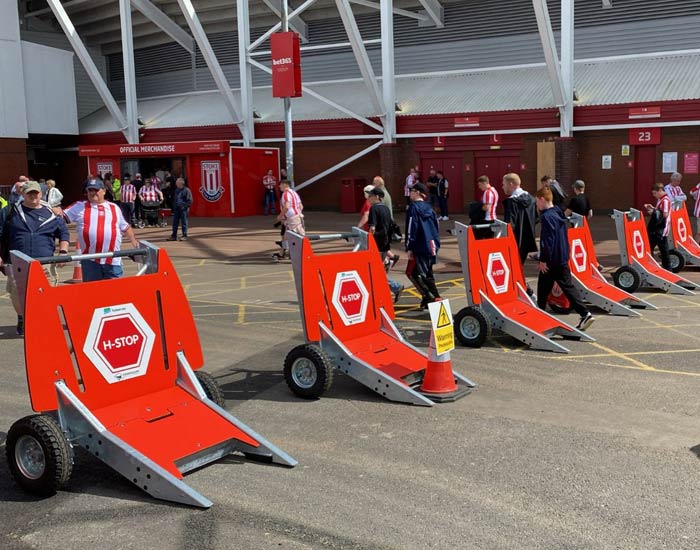

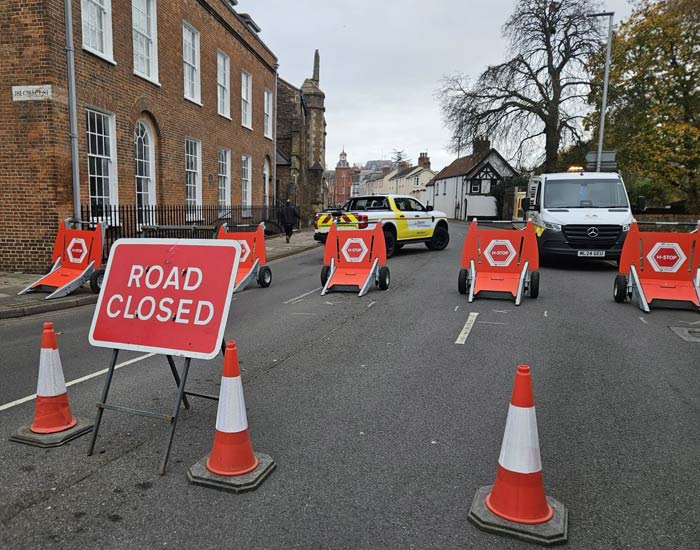

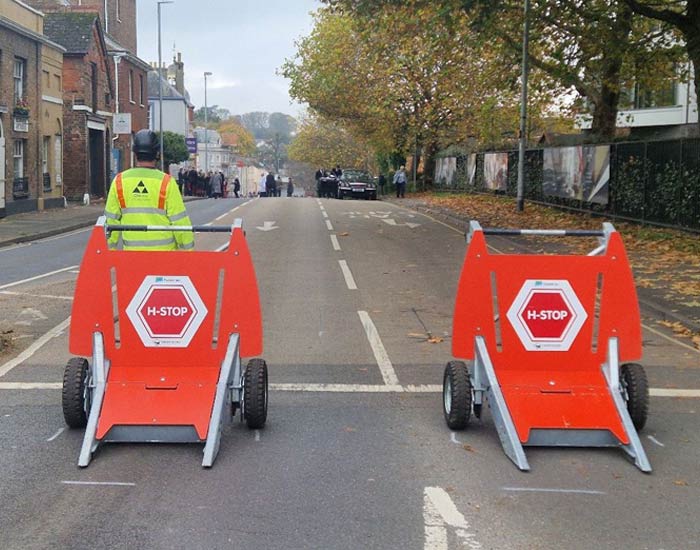

Fully mobile and pedestrian-permeable, the H-Stop® is ideal for public events, city centres, stadiums, and transport hubs, where crowd safety and rapid access control are essential. Its high-visibility red finish serves as both a deterrent and a clear signal of protection, with optional custom colours and branding available.
Features and Benefits
-
Certified HVM performance – independently tested and certified as a standalone barrier.
-
No ground fixings required – 100 % surface-mounted, no anchors or ramps needed.
-
Solo deployment – manoeuvrable by one operative with pneumatic wheels for uneven surfaces.
-
Pedestrian permeable – allows free movement for pedestrians, cyclists, and strollers.
-
Flexible layout – configure chicanes or phased installations for controlled vehicle access.
-
High visibility – standard bright red finish with optional custom branding.
-
Compact storage and transport – units nest trolley-style; up to 14 can fit on a standard trailer.
Specifications
| Specification | Detail |
| Certification standard | ISO 22343-1:2023 |
| Test facility | Transpolis |
| Product rating | V/3500 [N3C]/32/90:12.9/19.0 |
| Rated vehicle speed | 32 mph (50 km/h) |
| Rated height | 1288 mm |
| Width of unit | 1200 mm |
| Depth of unit | 1275 mm |
| Weight | 179 kg |
| Rated configuration | Single unit (no interconnection required) |
| Gap between units | 1200 mm (measured at 600 mm height); 900 mm between tyres at ground level |
| Foundation requirement | Surface-placed barrier (no excavation or anchors) |
Common Applications
-
Public events and festivals – rapid deployment to secure crowd areas.
-
Stadiums and venues – protect entrances and gathering points.
-
City centres – create safe pedestrian zones and restrict vehicle intrusion.
-
Transport hubs – safeguard high-footfall locations from unauthorised access.
-
Government and high-profile sites – reinforce security at vulnerable access points.
-
Facilities management zones – enable controlled vehicle access for authorised users.
