Traffic Bridges

Worxsafe™ Traffic Bridges are designed to provide safe, temporary crossings for vehicles, machinery, and pedestrians across excavations, trenches, and work zones.

Each bridge combines low weight with exceptional strength, meeting the Swedish Transport Administration’s TRVK Bro 11 load requirements and classified as BK-1 for road traffic.

Constructed from high-grade aluminium, the modular bridge segments can be quickly assembled, extended, or relocated as site conditions change.

Their low overall weight simplifies handling without compromising performance, making them ideal for use on roadworks, utilities, and construction sites where reliable temporary access is required.

Traffic Bridge 4 m

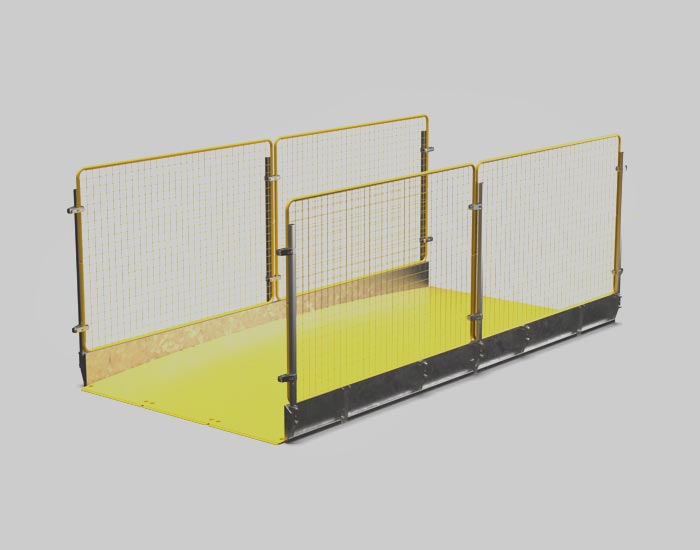

Worxsafe™ 4 m Traffic Bridge is a multifunctional solution designed for both pedestrian and light vehicle use. Its compact footprint and integrated GC railing system make it ideal for narrow urban spaces and temporary routes in city centres. Despite its low weight, it maintains full BK-1 classification and compliance with TRVK Bro 11.

Specifications

• Per Section Weight: 290 kg

• Length: 4.37 m

• Width: 0.66 m

• Pedestrian Free Span: 3 m (max load 300 kg)

• Vehicle Free Span: 1.5 m (max load 28,500 kg)

Traffic Bridge 6 m

The Worxsafe™ 6 m Traffic Bridge is a modular, connectable unit designed to accommodate both heavy vehicles and pedestrian traffic. The checker plate driving surface with textured coating provides excellent grip for all-weather safety. With BK-1 classification and TRVK Bro 11 compliance, this bridge offers a robust solution for crossings up to 4 metres wide.

Specifications

• Per Section Weight: 1,250 kg

• Length: 5.815 m

• Width: 1.5 m

• Vehicle Free Span: 4 m

• Max Load: 28,500 kg

Traffic Bridge 10 m

Worxsafe™ 10 m Traffic Bridge provides a heavy-duty modular crossing suitable for larger excavation spans or multi-lane access. Like the shorter models, it features a tear-patterned aluminium deck with textured paint for superior grip. Despite its long reach and low weight, it meets BK-1 load requirements under TRVK Bro 11 and supports both heavy traffic and pedestrian movement.

Specifications

• Per Section Weight: 2,100 kg

• Length: 10.03 m

• Width: 1.5 m

• Vehicle Free Span: 6 m

• Max Load: 24,000 kg

Features and Benefits

Across the full range, all Worxsafe™ Traffic Bridges share the following core design and performance advantages:

• BK-1 classification – meets Swedish Transport Administration load standards (TRVK Bro 11).

• High-strength aluminium construction – combines low weight with load-bearing capacity.

• Modular and connectable – sections can be joined to achieve the desired width.

• Checker plate or tear-pattern surface – enhances grip for vehicles, pedestrians, and cyclists.

• Quick installation and removal – reduces downtime and relocation effort.

• Optional handrails and GC barriers – adaptable for mixed pedestrian/vehicle use.

• Cost-effective temporary solution – ideal for projects not requiring permanent structures.

Common Applications

• Road and utility crossings – provides temporary vehicle and plant access across excavations.

• Construction and civil works – supports safe transport of materials and machinery.

• Pedestrian and cyclist detours – maintains safe public passage during infrastructure work.

• Event logistics – supports vehicle access routes and service crossings.

• Emergency or temporary access – quickly restores connectivity where permanent bridges are unavailable.
