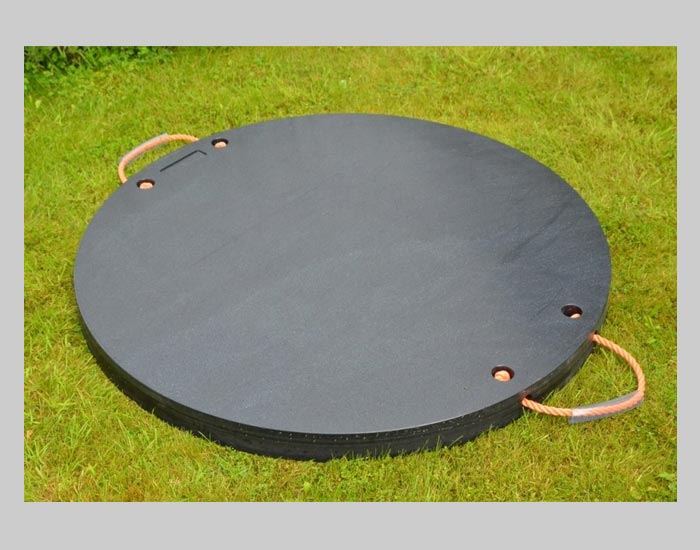

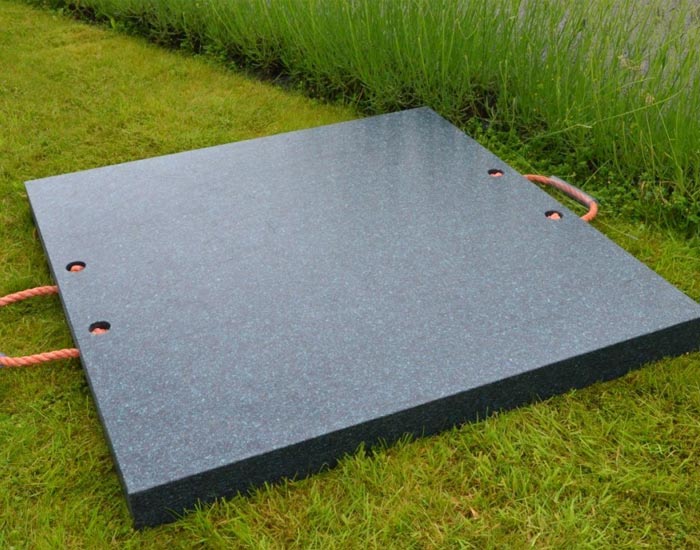

UniMat® Crane Mat

Heavy-duty crane mat for reliable load spreading

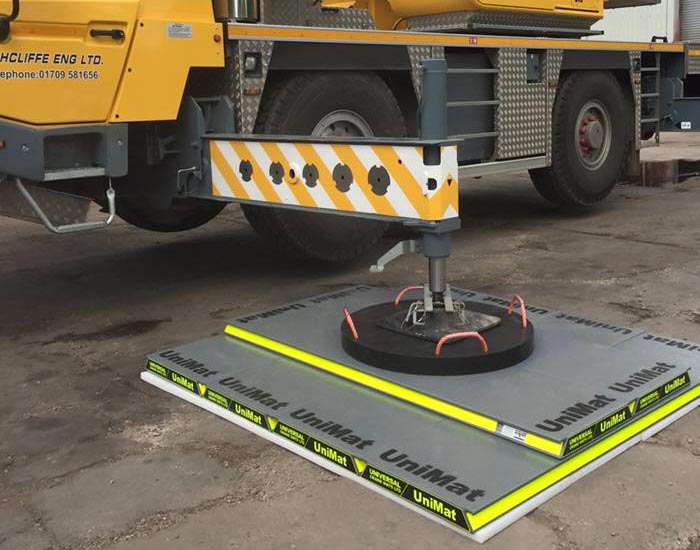

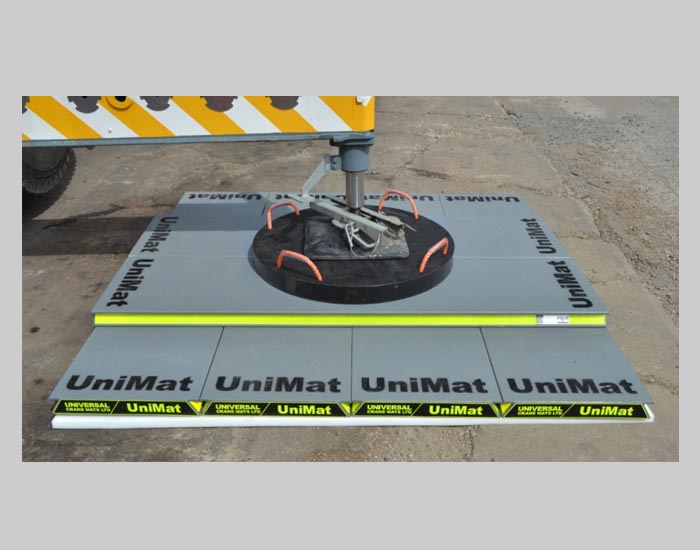

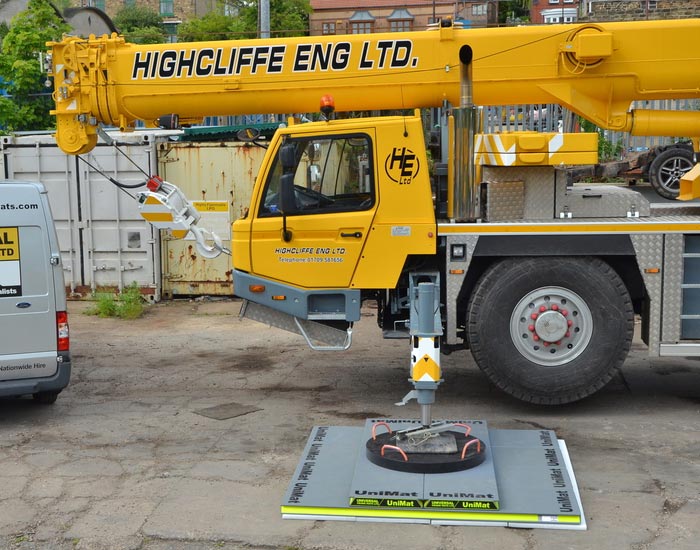

UniMat® Crane Mat provides durable and stable ground support for crane, MEWP, and mobile plant outriggers, ensuring safe lifting operations on site. Designed as a long-life alternative to timber, these high-density polyethylene (HDPE) mats deliver exceptional load distribution and strength while resisting water, chemicals, and temperature extremes.

Engineered for heavy-duty applications, each mat is unbreakable under extreme loads and maintains performance in temperatures from –100 °C to +80 °C. The Safety Grip surface option enhances stability and prevents slippage under outrigger feet, while rope handles or fitted chains allow safe, easy positioning. With engraved load data and identification details, UniMat® Crane Mat supports compliance and traceability on busy worksites.

Lightweight compared to steel and impervious to rot or corrosion, UniMat® Crane Mat offers a sustainable, long-life solution for crane operations requiring dependable ground protection and load support.

Key Features

High-strength HDPE design – distributes outrigger and stabilizer loads safely.
Unbreakable under heavy loading – proven long-term durability.
All-weather performance – unaffected by water, frost, or temperature extremes (–100 °C to +80 °C).
Safety Grip finish – optional non-slip surface for added outrigger stability.
Simple handling – rope handles or fitted chains for secure placement.
Low maintenance – corrosion-free, rot-proof, and easy to clean.
Traceable identification – engraved details for SWL, weight, and size.
Sustainable construction – recyclable HDPE for reduced environmental impact.

Technical Details

Size (mm)	Load Capacity	Weight	Load Spread Area
1000 × 1000 × 50	40 t	47.5 kg	1.00 m²
1000 × 1000 × 60	50 t	57.3 kg	1.00 m²
1000 × 1000 × 80	70 t	76.4 kg	1.00 m²
1000 × 1000 × 100	80 t	95.5 kg	1.00 m²

Material: High-density polyethylene (HDPE)

Finish: Optional Safety Grip surface

Handling: Rope handles or graded chains

Temperature Range: –100 °C to +80 °C

Electrical Isolation: Yes

Typical Applications

Crane and lifting operations
MEWP and mobile plant outriggers
Temporary lifting sites or compounds
Areas requiring corrosion-resistant, long-life load spread mats
