MaxiTrack
Heavy-Duty Ground Protection Trackway for Plant and Construction Access

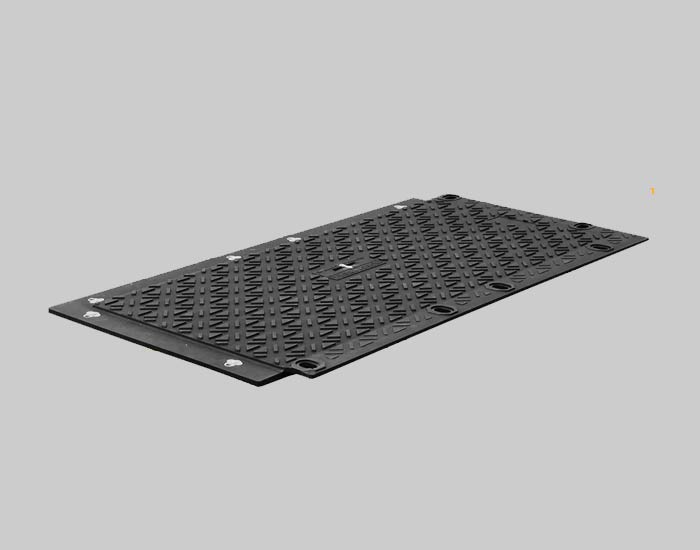

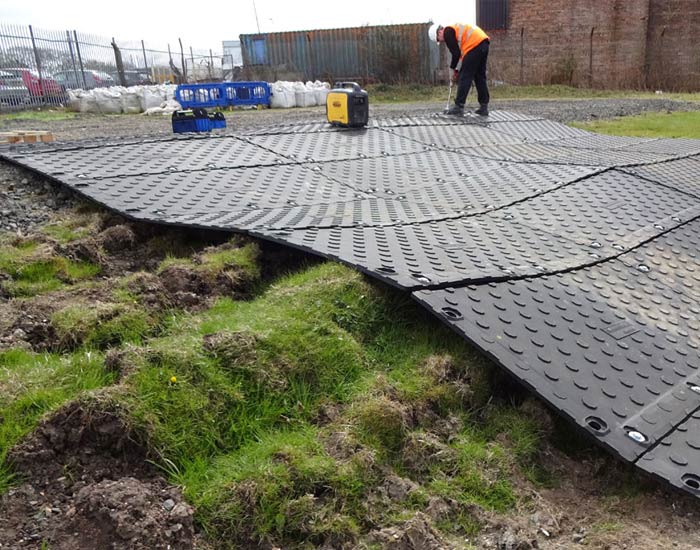

The MaxiTrack system provides a heavy-duty yet man-handleable trackway solution for temporary access, vehicle routes, and site protection. Manufactured in Europe from high-performance Zetralene™ plastic, the mats deliver exceptional load-bearing strength while remaining light enough to handle manually – typically by a two-person lift.
Each 40 kg mat incorporates overlapping lipped connectors for secure joins, enhanced stability, and effective mud suppression. The SmartGrip™ tread pattern ensures superior traction for rubber-tracked, tyred, and even military vehicles, while slotted joints allow for heat expansion across large installations such as compounds or car parks.
Ideal for heavy industry, construction, ports, and large events, MaxiTrack combines portability, durability, and strength in one advanced trackway system.
Key Features
-

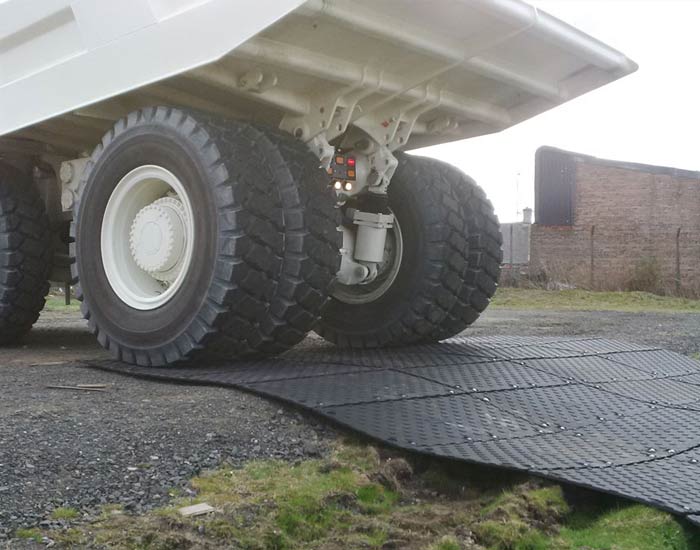

Exceptional strength – designed for heavy-duty use with vehicles up to 100 t UDL (130 t with caution on firm, dry ground).
-

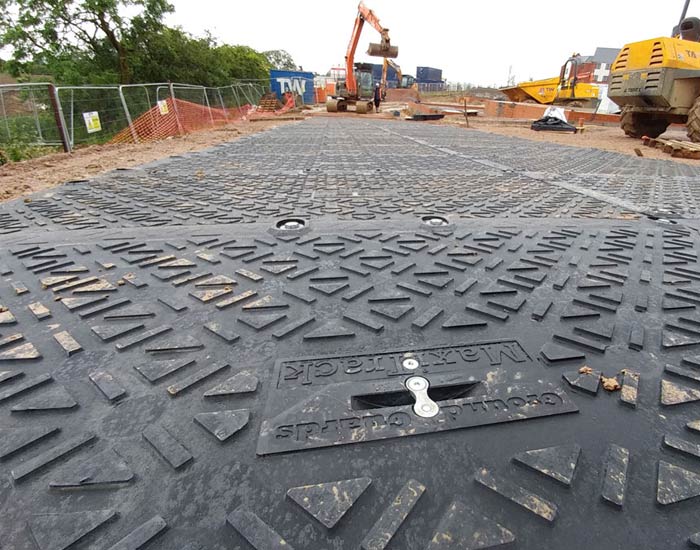

SmartGrip™ traction – superior multidirectional grip for all vehicle types.
-
Man-handleable – 40 kg mats, safely lifted by two people without machinery.
-

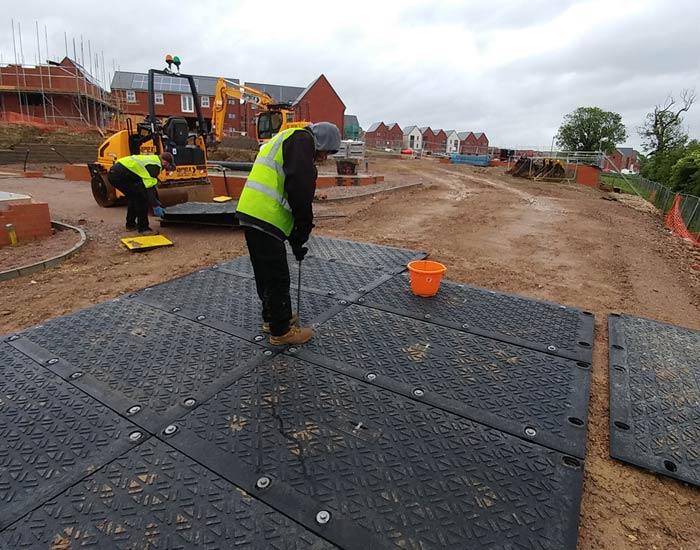

Quick installation – overlapping lipped connectors for fast, secure joins.
-
Adaptable system – slotted joints accommodate expansion on large areas.
-
Durable design – 12-month guarantee against breakage by vehicles within loading limits.
-
Sustainable – made from 100% recycled Zetralene™ plastic and fully recyclable.
Typical Applications
-
Heavy industry – supports oil, gas, and manufacturing operations requiring stable access for heavy equipment.
-
Construction and infrastructure – provides reliable ground protection for machinery and workforce access.
-
Military and civil defence – suitable for tracked and wheeled vehicles in demanding terrain.
-
Ports and logistics – creates temporary access routes for plant and HGVs in terminals and yards.
-
Events and exhibitions – establishes durable vehicle access and service routes over grass or turf.
Technical Details
| Specification | Details |
| Material | Zetralene™ (100% recycled HDPE) |
| Overall Size | 1.9 m × 1.0 m × 23 mm |
| Surface Size | 1.8 m × 0.9 m |
| Surface Area | 1.62 m² |
| Weight | 40 kg |
| Slip Testing | BS 7976 Part 2 |
| Load Rating | 100 t UDL (130 t with caution, firm dry ground) |
| Connectors | 6 self-aligning shoulder bolts per mat |
| Colours | Black / Beige |
| Stillage Pack | 25 mats per stillage (1,130 kg total) |
| Deflection | 9.5 mm (CBR 4%) / 7.7 mm (CBR 11%) |
