Concertina Barrier
Foldable access control for flexible site safety

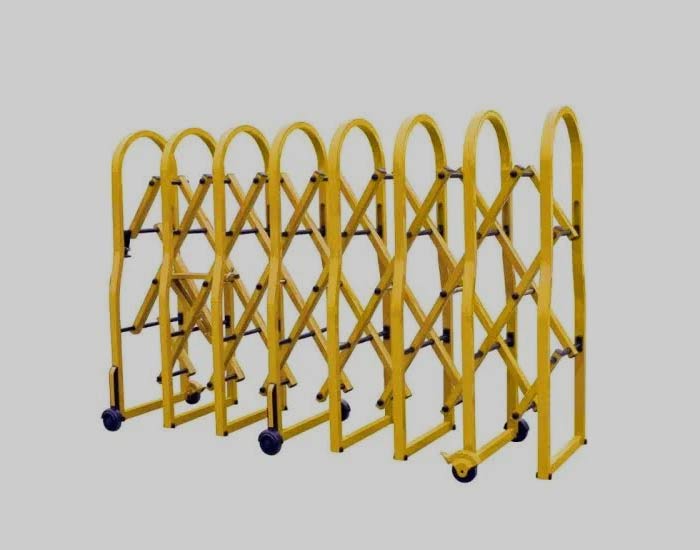

The Concertina Barrier is a heavy-duty foldable system designed for pedestrian management, crowd control, and hazard isolation. Manufactured from lightweight powder-coated aluminium, it combines strength with portability, making it easy to deploy, reposition, and store in areas where space is limited.

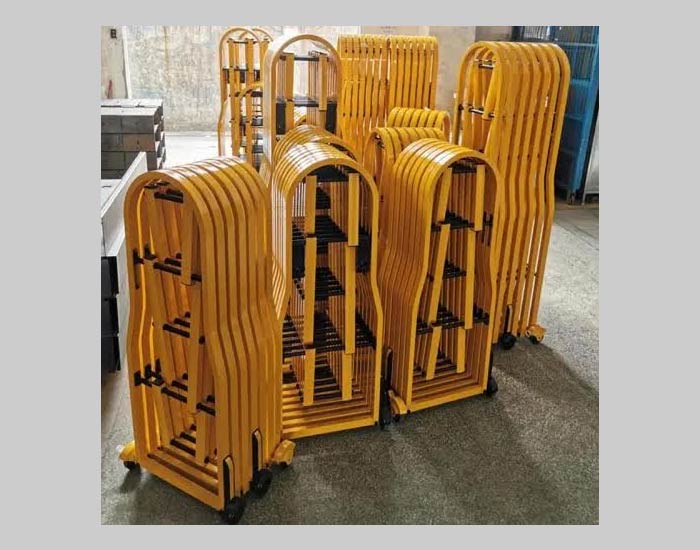

Each unit extends up to 2m or 4m, with heights available in 1.3m or 1.8m, and collapses to under 1m for compact storage. Locking wheels provide stability, while a clip-and-lock mechanism enables multiple barriers to be linked together for extended coverage. Powder-coated in red or yellow for visibility, the barrier is a reliable choice for both indoor and outdoor use.

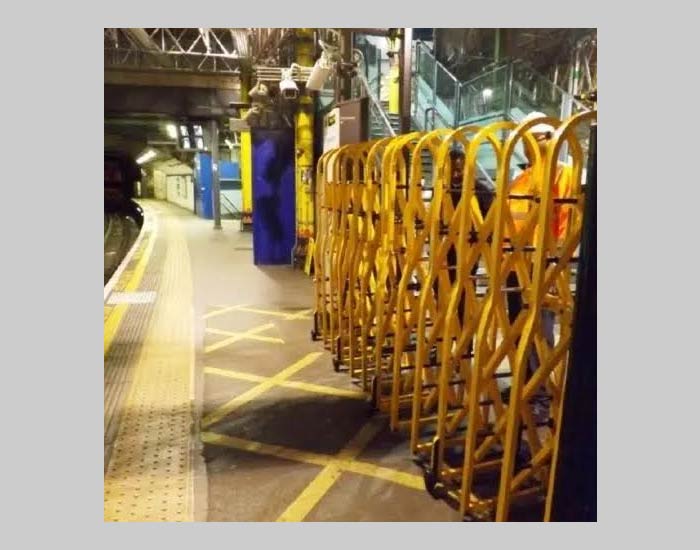

Trusted in high-traffic environments such as the London Underground, airports, and stadiums, the Concertina Barrier delivers quick, adaptable control wherever temporary access restriction is needed. Its foldable profile and integrated wheels allow safe movement and rapid response without the bulk of fixed systems.

Features and Benefits
-
Expanding design – extends to 2m or 4m, collapses for compact storage.
-
Lockable frame – secure on both ends with integrated key lock system.
-
Durable construction – lightweight powder-coated aluminium for strength and visibility.
-
Smooth handling – wheeled frame for easy deployment across varied surfaces.
-
Flexible coverage – connect multiple units with clip system for longer runs.
-
Indoor and outdoor use – suitable for facilities, transport hubs, and events.

Specifications
-
Available Lengths: 2.1 m or 4.0 m
-
Closed Width: 47.5 cm (2m unit) / 83 cm (4m unit)
-
Available Heights: 1.3 m or 1.8 m
-
Frame Weight: Approx. 33 kg
-
Material: Powder-coated aluminium
-

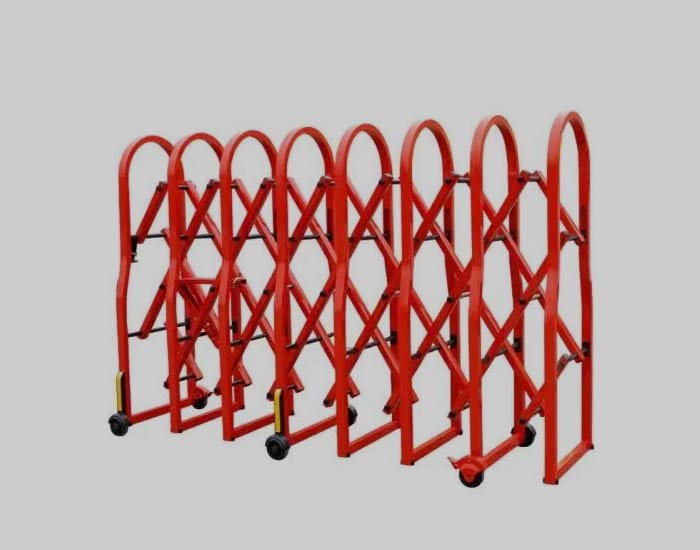

Colours: Red / Yellow (other colours available on request)
-
Locking system: Lock and key on both ends
-
Connections: Clip-and-lock system to join multiple units

Common Applications
-
Railway stations and airports – restrict access quickly in busy transit areas.
-
Hospitals and retail foyers – isolate maintenance zones or hazards.
-
Stadiums and events – control crowd movement and manage temporary access points.
-
Car parks and facilities – block restricted areas during closures or works.
-
Emergency response – provide rapid, visible isolation of unsafe zones.

Full Turnkey Support
At Chevron Traffic Management, our Urban Solutions division offers a comprehensive barrier and separator hire service for temporary traffic management systems – designed to keep urban environments safe, efficient, and compliant throughout all stages of your works or event.
We don’t just supply equipment – we deliver a full turnkey solution, including:
-
Temporary Traffic Management Products for Hire
A wide range of high-quality, compliant products available for short or long-term hire, suitable for complex urban environments, construction sites, utilities, events, and more. -
Design and Planning
Our expert team provides fully customised traffic management designs using AutoCAD, with the option for 3D plans and 3D rendered videos to clearly visualise how the scheme will function and appear once installed. This ensures complete clarity for clients, stakeholders, and local authorities. -
Installation and Removal
Our trained and accredited teams manage the full installation and removal process, ensuring safety, compliance, and minimal disruption. -
Permit Management
We take care of all local authority permits, traffic regulation orders, and approvals required for the installation – simplifying the process and ensuring your project remains on schedule.
Why Choose Chevron TM Urban Solutions?
-
End-to-end service from concept to completion
-
Advanced design capability with 2D, 3D, and video visualisation
-
Fully compliant with industry and local authority standards
-
Seamless integration with events, utilities, and infrastructure projects
-
Experienced teams focused on safety, efficiency, and professionalism
Get in touch with us today to discuss your next project – and see how our Urban Solutions team can help deliver safe, smart, and fully managed traffic control tailored to your needs.
